Solutions

Lead bespoke and modular power solutions

Introduction

The end of the fossil-nuclear era has in fact already begun. Nonetheless, a sixth of the population in this world is still without power. This is what defines Caigate; the future to global power solutions. We are now in a generation where hybrid power are direct competitors to fossil and nuclear power plants. At Caigate, we not only focus on just one source of power, we incorporate all three. Finding the right balance between fossil, renewable, and heat power is the key, and managing the most cost-optimized system through the smart EMS via the cloud.

With our power solutions, we are able to achieve:

  • Cleaner Energy

The inclusion of renewable energy together with fossil energy (diesel, HFO, gas) is to decrease pollution caused by pure fossil era. Maximise use of available renewable energy, such as solar, hydro, wind, biomass, geothermal, tide, wave, etc.

  • Maximise Efficiency

To find the optimal balance for maximum stability and cost effectiveness between renewable and fossil fuel.

  • Stability First Priority

To combine renewable energy with fossil energy without compromising stability. Managing OT and IT in order to reliably match the energy supply and demand at all times without fail.

  • Smart Energy.

Using smart technology to increase cost effectiveness of overall system, as well as minimising emission by using local resources without compromising overall system stability and efficiency in accordance to the customer’s demand.

  • Flexible Energy.

Simple installation providing solutions for any size of application. Our solutions are modularised and can be scalable for fast plug and play systems.

  • Energy Applications.

Apart from large power plants, we also focus on small plants that can solve pollution and efficiency crisis across the world in order to benefit long-term from renewable energy systems. Solutions for residential, industrial, military, maritime, off-grid, and remote islands.

Return To Top

Power Plant

Fastest deployment within 4 months for large scale power plant.
Turnkey solutions for up to 50MW plants.
Support options for maintenance, efficiency optimisation, and spare parts during complete plant lifetime.

Fastest deployment within 4 months for large scale power plant.
Turnkey solutions for up to 50MW plants.
Support options for maintenance, efficiency optimisation, and spare parts during complete plant lifetime.

Fast, reliable, and cost-effective new plants.

Caigate has a proven record of successful turnkey power plant installations. Implemented with a combination of professional process know-how, design expertise, qualified project management, experienced commissioning engineers and first-rate products.

Bespoke Design

  • Analyse customers’ requirements
  • Analyse power demand patterns
  • Site Surveys
  • Piping
  • Electrical Systems
  • Equipment installation
  • Logistics
  • Testing
  • Final Commissioning

Rapid Deployment

  • On-time delivery
  • Within 4 months for large scale HFO power plant
  • Standardised Containers
  • Easy modular installation
  • Detailed project management

Plant locations & Applications

  • Remote areas
  • Mountain areas
  • Isolated islands
  • Tropical areas
  • High Altitude
  • Mine
  • Oil & Gas
  • Military
  • Industrial
  • Residential

Independent Power Producer (IPP)

  • Develop reliable, adaptable, and affordable projects
  • Simplify investment of energy
  • Provide new business model opportunities
  • Increase energy efficiency
  • Shorten pay-back period

Diesel: Cummins, Volvo, Caterpillar, Mitsubishi, Perkins, MTU, Scania
Gas: MAN, MWM, Siemens, MTU
HFO: MAN, Caterpillar, Wartsila

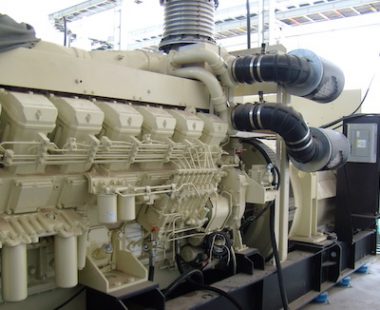

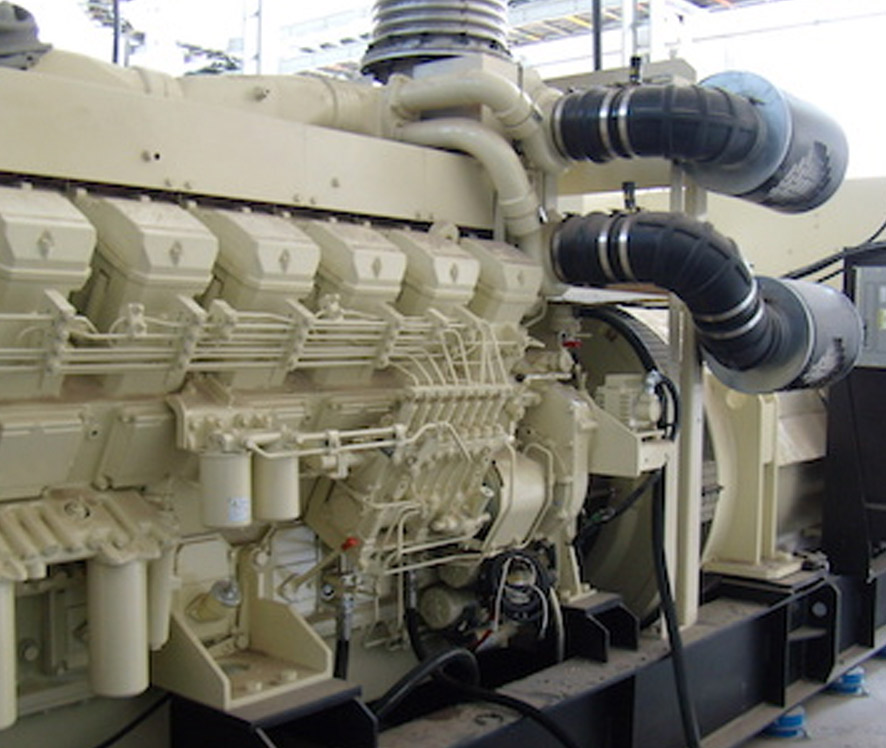

Diesel Generator Set

Compatible with all top-tier standard diesel engines, alternator, and controller.Compact design and high-power density for optimal space-saving and fuel efficiency. Flexible customisation to match your power needs.

  • Power Container Module Series (PCM), 50Hz/60Hz switchable, 300kW-2000kW
  • DG-50Hz-Caigatex
  • DG-60Hz-Caigatex
  • SuperGen

Compatible with all top-tier standard diesel engines, alternator, and controller. Compact design and high-power density for optimal space-saving and fuel efficiency. Flexible customisation to match your power needs.

  • Power Container Module Series (PCM), 50Hz/60Hz switchable, 300kW-2000kW
  • Power Container Module Series (PCM), 50Hz/60Hz switchable, 300kW-2000kW

World-class standards for continuous, prime, and standby power.

Caigate offers the largest range of specifications available for Diesel, HFO, and Gas generating set. Single unit capability ranging from capacity of 10kVA to 16000kVA, frequency 50Hz/60Hz, and voltage up to 15kV. Includes open and enclosed generator sets for extreme terrains which offer outstanding value for money, high efficiency, low fuel consumption, and global emissions compliance. Key customisation options further enhance the standard product, offering versatility and flexibility to match your power needs. Selecting the right diesel generator set for your application, and installing it is our mission.

Primary Power

  • Test and proven worldwide
  • Powered by world-renowned engines (CAT, Cummins, Mitsubishi, MTU and Perkins etc.)

Standby Back-up Power

  • 25 years of expertise in design
  • Installation service
  • On-site test service
  • Commissioning
  • After sale maintenance

Bespoke Design

  • Low and medium voltage options (up to 15kV)
  • 50Hz/60Hz
  • Canopy or enclosed containers with minimum 55dB(A)
  • Single unit capacity of 10kVA to 16000kVA

Modular Design

  • Two generators can run in parallel
  • All-in-one container to reduce equipment and space
  • Container size suitable for standard freight shipment
  • Reduce on-site installation process

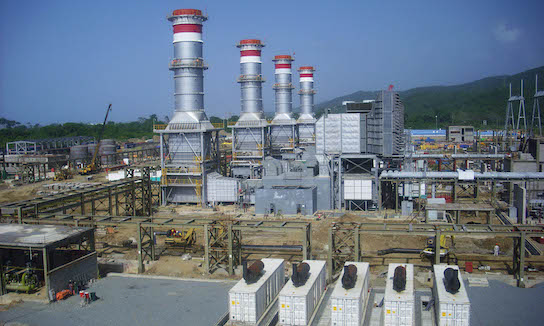

Blackstart

One-stop solution including conceptual design, detailed engineering, software & hardware delivery, and commissioning.
Experience in designing for unique environment and setting.
Over 10 successful blackstart systems for coal-fired and gas turbine power plant projects.

One-stop solution including conceptual design, detailed engineering, software & hardware delivery, and commissioning.
Experience in designing for unique environment and setting.
Over 10 successful blackstart systems for coal-fired and gas turbine power plant projects.

Focusing on large coal-fired and gas turbine power plant applications.

In the event of a blackout, a reliable black start system is essential. Caigate offers a complete turnkey solution that will fit your need fast, no matter your engineering system, size or configuration of your power plant. We combine decades of expertise, in Africa, Asia, and South America regions in gas turbine and diesel generation sets to produce systems that meet the highest quality standard in the industry.

Bespoke Design

  • Knowledge of power plant process and technology
  • In-depth understanding of customer requests
  • Capable of gathering consumer load curve
  • Able to correctly calculate required power
  • Understanding the right components and assembly

Modular Packaging

  • Creating the right design dependant on the temperature, humidity, and altitude conditions of the project location
  • Containerised standard
  • Simple plug and play installation
  • Suitable for freight shipment
  • Weather-proof and low noise

Successful Applications

  • Over 10 successful blackstart systems for coal-fired and gas turbine power plant projects
  • Tested and approved all existing projects
  • Collaboration with renowned global engineering and consulting of power generation
  • Expertise in North America, South America, Africa, Asia, etc.

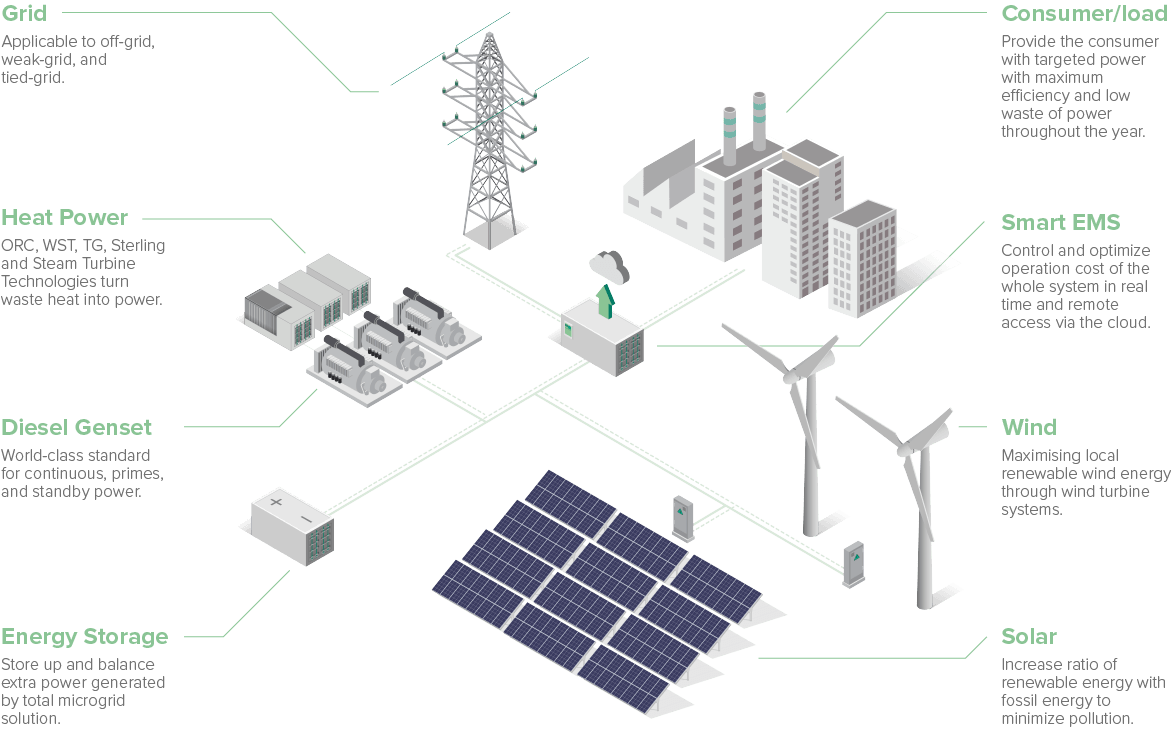

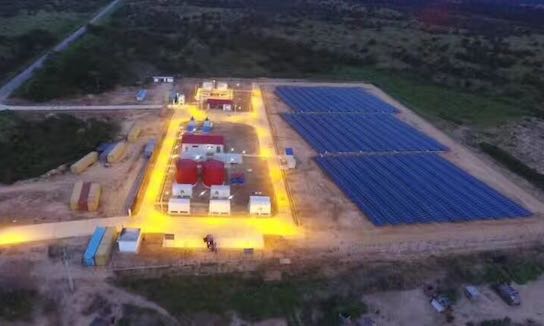

HybridPower

Return To Top

Fossil Energy: Reliable power source for whole system
Renewable: Minimise emissions and produce free clean energy
Storage: Balance and store up power
Smart EMS: Optimise total grid power

  • PowerHub

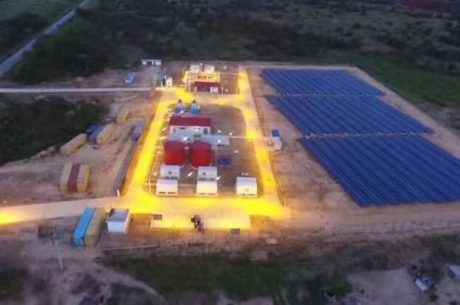

20181031094410

Fossil Energy: Reliable power source for whole system
Renewable: Minimise emissions and produce free clean energy
Storage: Balance and store up power
Smart EMS: Optimise total grid power

Smart hybridisation taking efficiency to the next level

Most power today are generated from fossil fuels such as diesel, and only a small fraction of renewable energy have been effectively utilised. Caigate offers a combination of cutting-edge hybrid power technologies to maximise total power generation output by sustaining the reliable generation from fossil fuels and consistently raising the stability and ratio of use in local renewable energy. We offer a wide range of hybrid power systems from standalone hybrid power systems and hybrid power plants to hybrid power plants up to tens of megawatts scale.

Our Goals

  • Safe and Reliable: No matter how complex the system becomes, our number one priority is safety, and second is to be as reliable, if not more, as traditional fossil powered generators.
  • Affordable power: Make power available everywhere, especially for the third world countries. Everyone deserves a fair chance in life.
  • Local Resources: Maximise and make use of local resources, such as solar, biomass, wind, hydro, ocean, geothermal, etc.
  • Customer Simplicity: Simple setup, simple management, and simple to use.

Consumer

Cloud Services

Energy Storage

Electric & Electronic

Grid

Power Generation

Fossil

Geothermal

Ocean

Hydro

Biomass

Solar

Wind

Energy Storage

  • Extra energy not wasted
  • Stored in batteries and fly-wheels, etc.
  • Released to cover power demand
  • Energy generation becomes significantly more efficient

Smart EMS

  • Self-contained power system
  • Energy Management
  • Efficient use of renewable energy
  • Mitigate risks of renewable energy
  • Enables optimum efficiency
  • Fuel cost reduction

Renewable Power

  • Solar
  • Wind
  • Biomass
  • Hydro
  • Ocean
  • Geothermal

Modular Plug-in & Power

  • Compatible with most types of diesel gensets
  • Supports plug & play system
  • Simple setup and quick installation
  • Little to none on-site training
  • Controlled via intuitive control panels
  • Control remotely via the cloud

HeatPower

Return To Top

Turning wasted heat into power by using Organic Rankine Cycle (ORC), Wet Steam Turbine (WST), Turbo Generator (TG), Sterling Engine, and Steam Turbine technologies. Allowing temperatures as low as 70°C heat source to be reused.
  • Heat – ORC Brochure
Turning wasted heat into power by using Organic Rankine Cycle (ORC), Wet Steam Turbine (WST), Turbo Generator (TG), Sterling Engine, and Steam Turbine technologies. Allowing temperatures as low as 70°C heat source to be reused.
  • Heat – ORC Brochure

Using different technologies to reuse wasted heat or low heat into electricity

In traditional industrial processes, 50% of the heat energy is wasted and released into the environment. In the industrial field of power generation, typically in coal, nuclear, diesel power plant, and gas turbine, no matter whether the model is CHP or single combined, there is still large amounts of heat energy of small capacity, low pressure, and low temperature not being used efficiently. Traditional internal combustion generators only convert up to 40% of energy into electricity, which means the remaining energy are wasted in the exhaust and  jacket water. With Caigate’s ORC, WST, Sterling and steam turbine technology, dependent on size of application, can efficiently recover thermal power from the exhaust and jacket water which would otherwise be wasted, and in return generate extra electricity, lowering CO2 emissions, and bring significant fuel cost savings.

Heat to Power Solution

  • Wasted heat from engine to clean electricity
  • Captures energy from heat sources at as low as 70 °C
  • Low maintenance cost
  • Compatible with almost any internal combustion engine

Wide Applications

  • Biogas, Landfill gas
  • Biomass
  • Geothermal
  • Industrial Waste Heat Recovery
  • Diesel Gensets
  • Maritime
  • Concentrated Solar Power (CSP)
  • Cement Plant
  • Steel Plant

Reduce Cost

  • Engineered towards efficiency and reliability
  • No need for extra fuel
  • Minimum maintenance
  • Very low OPEX cost
  • Highly suitable for remote and isolated locations

Modular Plug-in & Power

  • Compatible with most types of engines
  • Supports plug & play systems
  • Simple setup and quick installation
  • Enclosure and container for entire system
  • Controlled via intuitive control panels
  • Control remotely via the cloud

If you have a project, we'll have a competitive solution!
